Engine condition on a company level

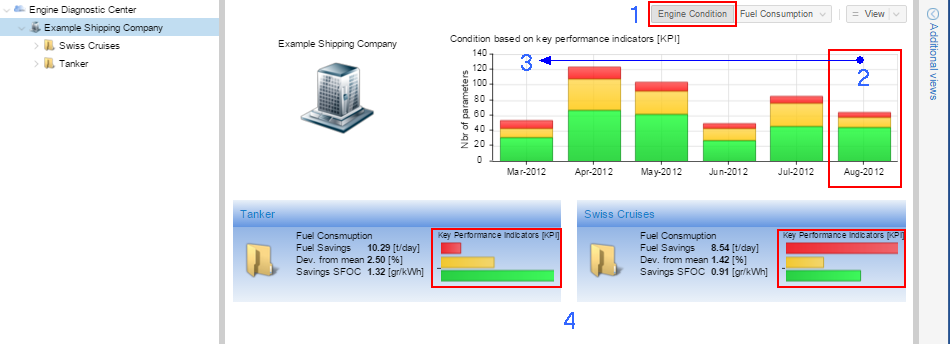

In the example below the company score shows the actual engine condition of your engines in a monthly history view.
Based on the selection of the "Structure Administrator" the example below shows 5 key performance indicators in a monthly time mode of 5 month.
1. Select "Engine Condition" (preselected by the program)
2. It shows the actual engine condition
3. The trend over the past months is shown
4. Group score engine condition preview including a preview of the fuel consumption
1. Engine condition in stack bar view
The engine condition is presented in a "Stack bargraph" per month.
The EDCenter summarizes all reports from one month in a single "Stack bargraph".
2. Cursor view
With the cursor you can touch the graph (color will change to white) an visualize the individual traffic light scores

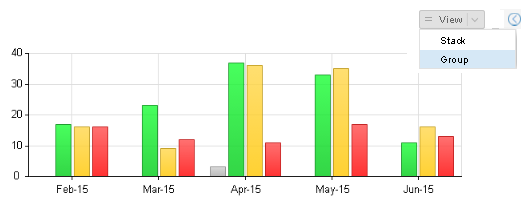

3. Engine condition in a group bar view
Select "View" to change the view from "Stack bar" to "Group bar"
