The "Engine Level" presents the engine condition, the fuel consumption as well as all other parameters in different views which are not selected as Key Performance Parameter (KPI).
Engine Level

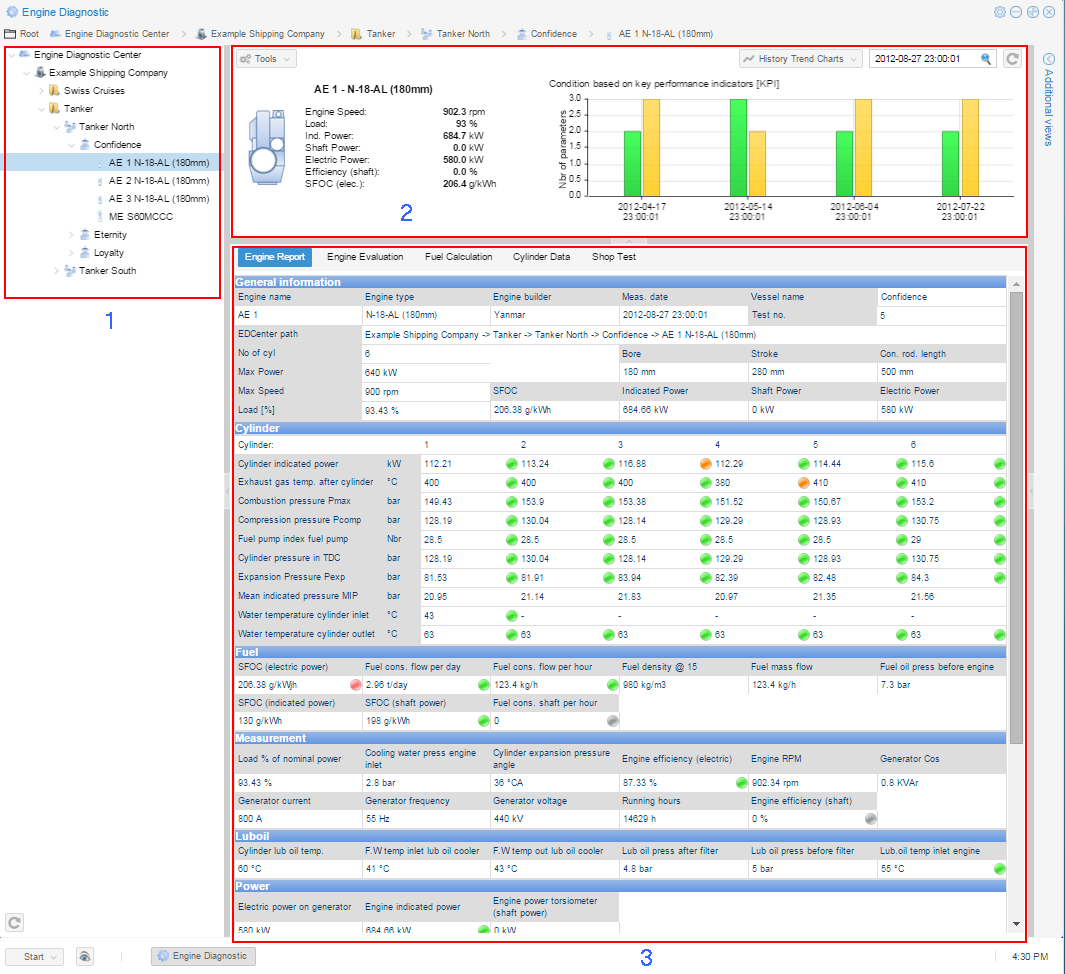

The engine level offers different possibilities to view the status of all the parameters:
Navigation area
2. General Overview
Summarizes selected parameters in an overview for quick analysis
3. Detailed Engine View
Shows the individual parameter status
Remark:

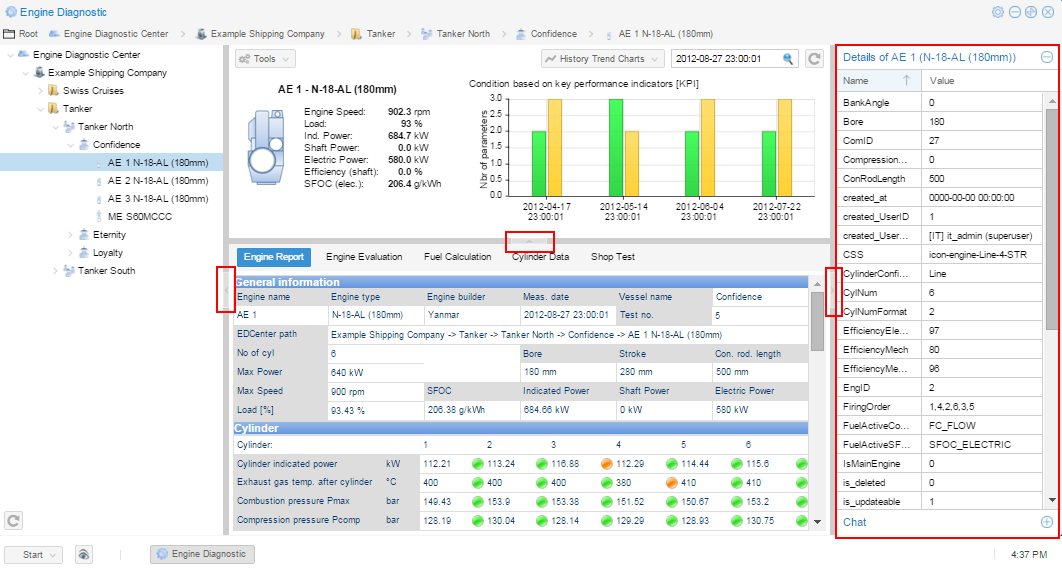

To enlarge/reduce the screen, click on the image boundary arrows shown below. If you click on the right boundery, additional information of the engine appears.
