Shop Test Editor

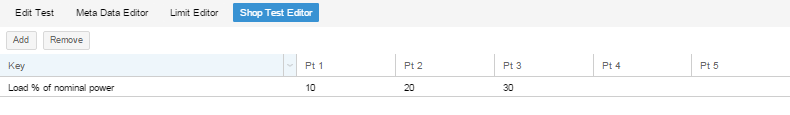

The "Shop Test Editor" works in combination with the "Engine Editor".



Please notice that the number of columns shown in the "Shop Test Editor" equals the

number entered in the "Engine Editor's" field: "Number of shop trial data".



shop test editor 1

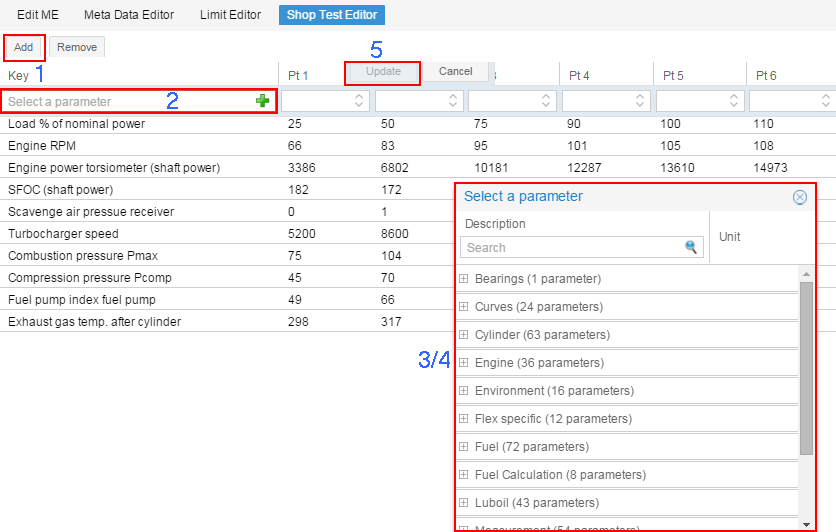

Example:

1. Select Add Parameter

2. New Line appears

3. Parameter table appears

4. Select from existing parameters

5. Click on "Update"



shop test editor 2
