Shop Test Limit Editor

The Shop Test Limit Editor can be accessed as follows:





Shop Test Limit Editor

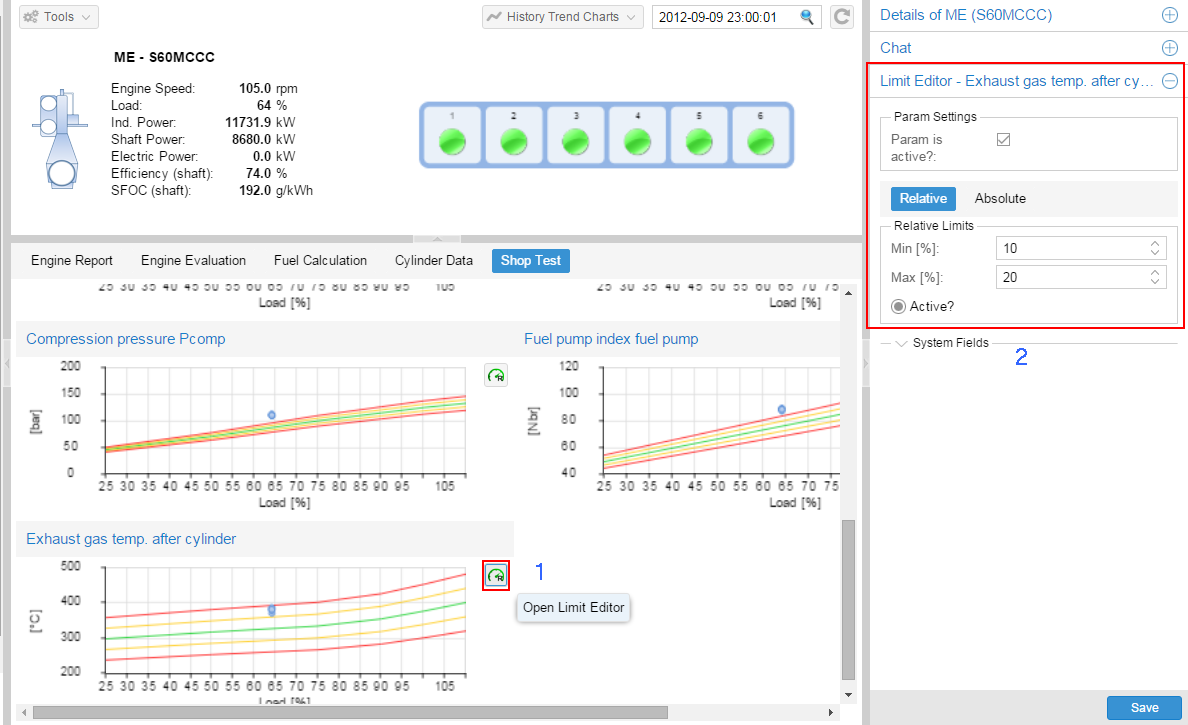

Step 1: Click on "Open Limit Editor"

Step 2: "Limit Editor" on selected parameter opens





Shop Test Limit2

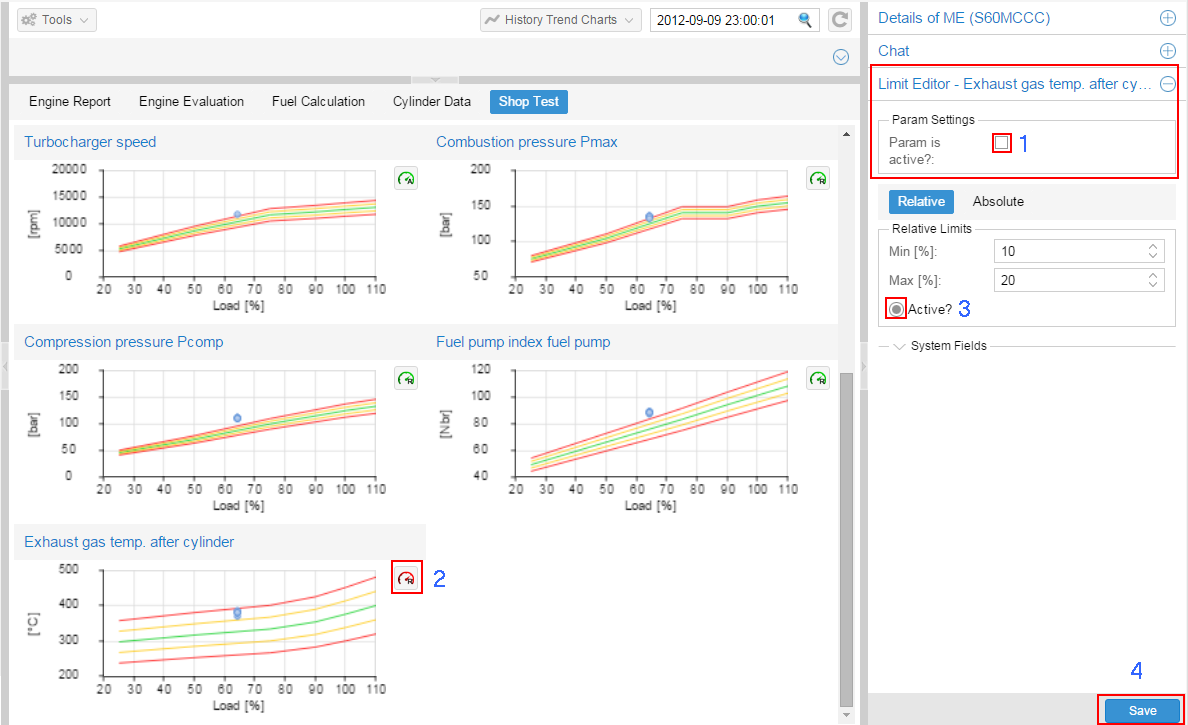

Step 3:        Limit Editor shows parameter status:

1. Check mark active or inactive

2. Parameter limit status next to shop test (red not active / green active)

3. Radio button to activate Relative or Absolute Limits

4. Press "Save" button to confirm changes







Shop Test Limit3
