Shop Test Zoom

The "Shop Test" view gives the option to zoom in on the individual graphic.





Shop Test Zoom



How to zoom details of the shop test curve:

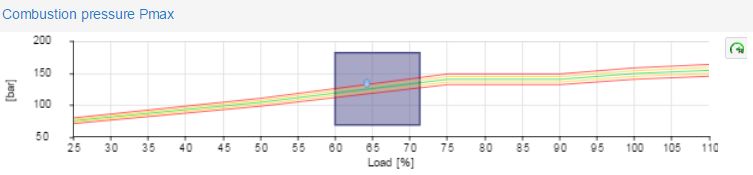

Step 1: Move cursor inside the graphic and right click on your mouse to mark as shown in the example below.





Shop Test Zoom1

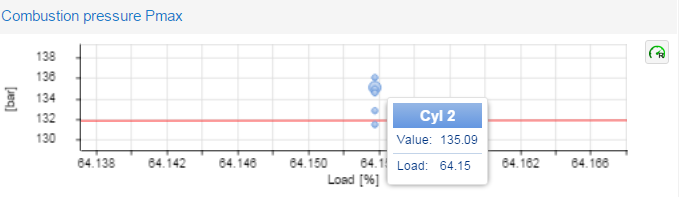

Step 2: The graph shows zoom of the selected area. By moving the cursor over the dots, the individual measurements will be presented.





Shop Test Zoom2

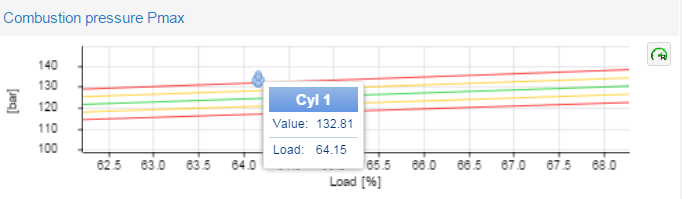

Step 3: You can repeat your zoom to see even more details. Selected dots of interest will change the size







Return: To zoom out, right click with your mouse on the graph as many times you zoomed in.
