The "Cylinder Performance" in the engine overview shows in a summary a quick and easy status of the engine condition of all cylinder related parameters.
Cylinder Performance

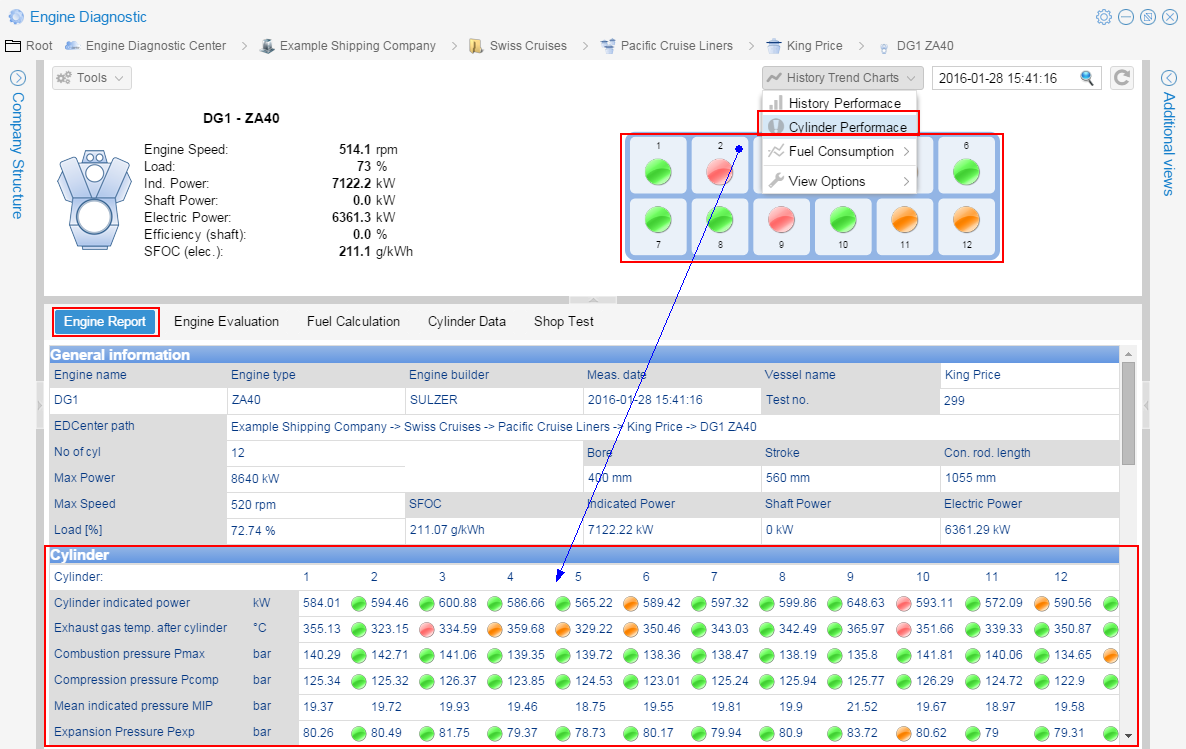

•Compare to "Engine Report" view
The overview of cylinder performance represents the actual status which is also presented in the "Engine Report" in the "Cylinder" section based on the selected KPI's of the "Engine Diagnostic Configurator"

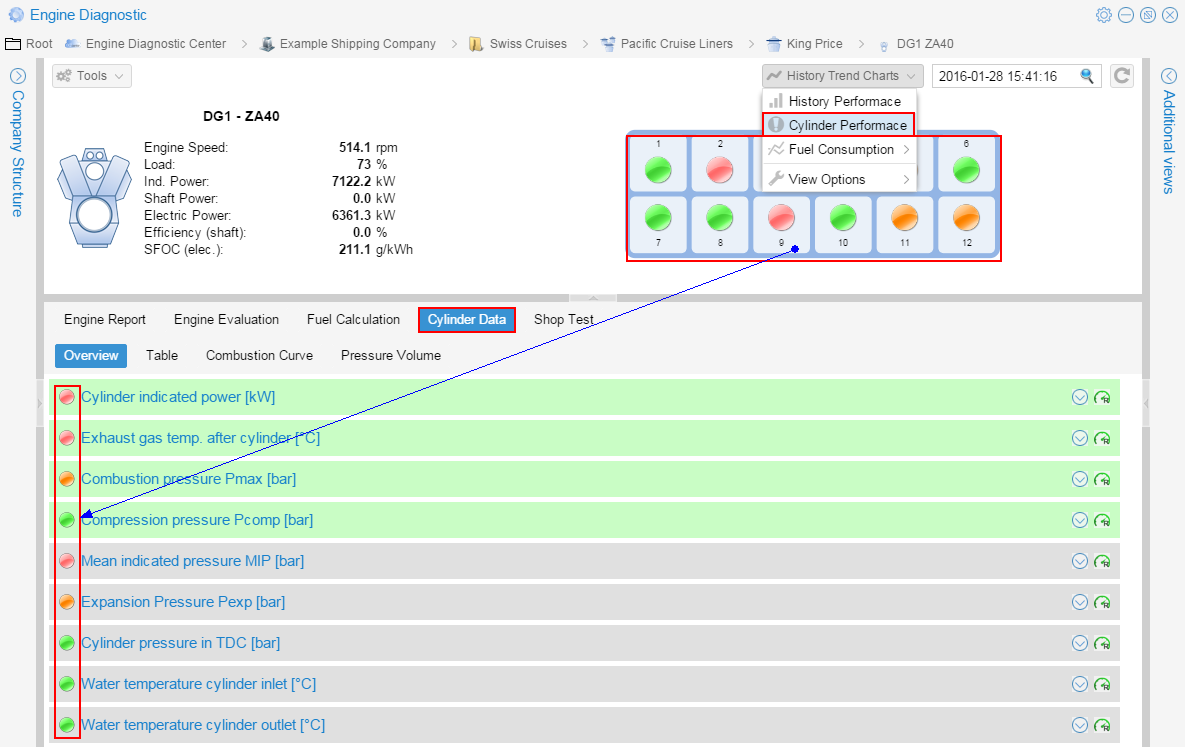

•Compare to "Cylinder Data" view
The overview of cylinder performance represents the actual status which is also presented in the "Engine Report" in the "Cylinder" section based on the selected KPI's of the "Engine Diagnostic Configurator"
The overview of cylinder performance represents the actual status only form the selected KPI's in the "Engine Diagnostic Configurator"
In the parameter field the selected KPI's are presented in green. All other parameter are colored in grey.
Example:
If the Expansion Pressure Pexp parameter is presented yellow and it's not selected as KPI the cylinder performance overview will not evaluate this parameter.
Remark:
Please refer to the "Parameter View" to see the logic of the "traffic lights".

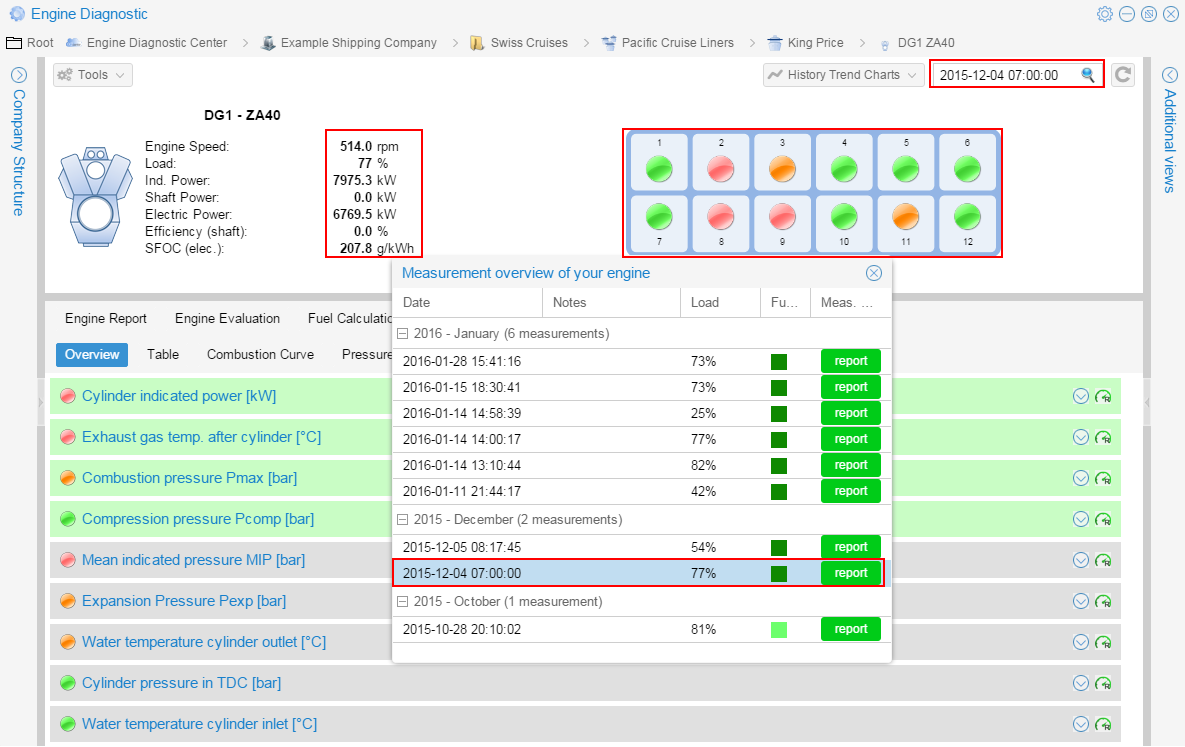

Select previous measurements
You can select previous measurements to be presented in the "Cylinder Performance" overview.
