The "Engine Condition" overview presents the selected "Key Performace Parameter" in different views for a quick analysis.
History Performance

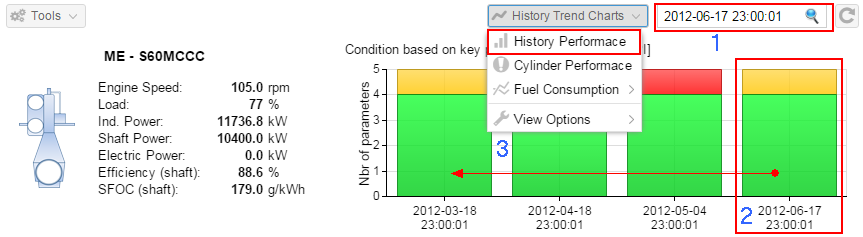

The engine condition in the History Performance is presented with the selected KPI's.
1. Drop down menu to select the measurements
2. Selected measurement (check 1)
3. History Performance of previous measurements

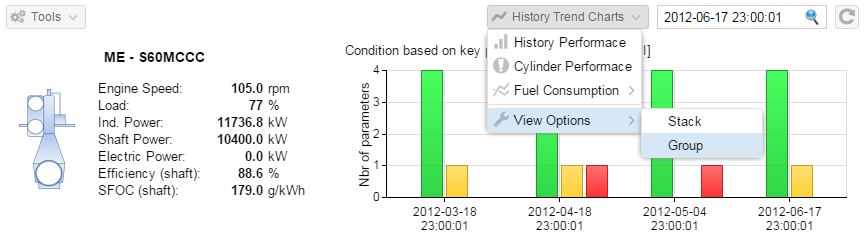

Group bar
Please select "View Options " and "Group" the graph will change
Remark:
Please refer to "Company Level" on how to access and to read the different engine condition views.

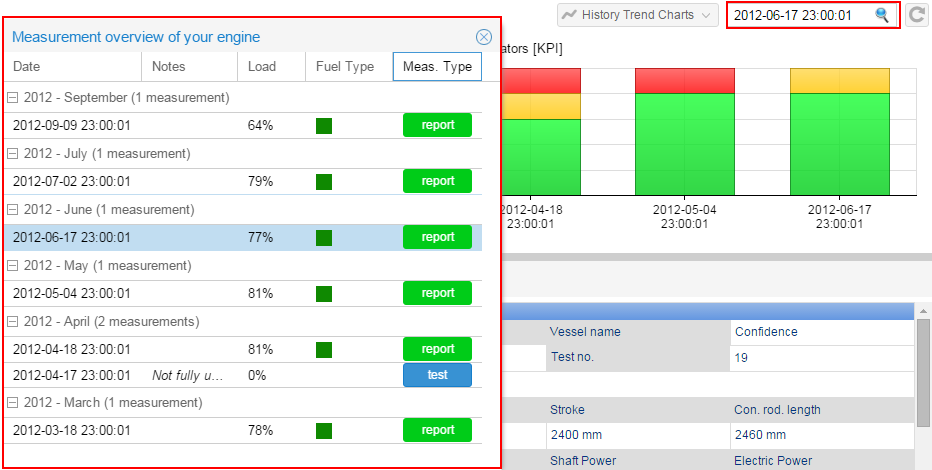

Select previous measurements
You can select previous measurements which are stored in the EDCenter.
The measurement overview shows:
•Date of measurement
•Notes of upload
•Load of measurement
•Fuel type (HFO dark green / MDO light green)
•Type of measurement (report = active for EDCenter / test = inactive for EDCenter)
Remark:
This measurement will only be temporarily active.
The results of the measurements will be presented in the overview (incl. history) as well as in the "Detailed Engine View" area.
